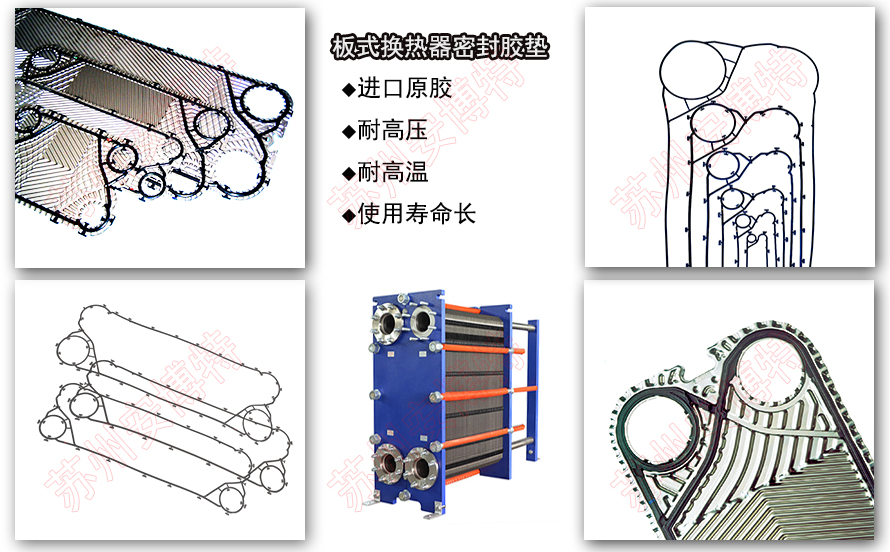

API艾普爾板式換熱器密封膠墊，技術咨詢與訂購電話：13338657815（微信同號），也可以發郵件給我公司：ambote@163.com
| 板式換熱器型號 | 換熱面積（㎡） | 板片長度(㎜) | 板片寬度(㎜) | 上下中心距(㎜) | 左右中心距(㎜) | 角孔直徑(㎜) |
| Sigma 7 | 0.07 | 570 | 156 | 480 | 90 | 30 |
| Sigma 9 | 0.094 | 794 | 156 | 704 | 90 | 30 |
| Sigma 13 | ||||||
| Sigma 16 | 0.156 | 967 | 188.5 | 38 | ||
| Sigma 17 | 0.134 | 979 | 196 | 868 | 110 | 51 |
| Sigma 22 | 0.249 | 990 | 296 | 860 | 178 | 49 |
| Sigma 25 | ||||||
| Sigma 26 | 0.259 | 1115 | 305 | 980 | 174 | 72 |
| Sigma 27 | 0.246 | 1107 | 295 | 980 | 174 | 72 |
| Sigma 30 | ||||||
| Sigma 32 | 0.367 | 1202 | 350 | 1056 | 230 | 75 |
| Sigma 35 | ||||||
| Sigma 36 | ||||||
| Sigma 37 | 0.343 | 1230 | 355 | 1076 | 218 | 88 |
| Sigma 45 | ||||||
| Sigma 52 | 0.58 | 1416 | 478 | 1252 | 314 | 120 |
| Sigma 55 | ||||||
| Sigma 56 | ||||||
| Sigma 64 | 0655 | 1661 | 481 | 1471 | 290 | 140 |
| Sigma 65 | 0.655 | 1677 | 496 | 1471 | 290 | 138 |
| Sigma 66 | 0.659 | 1678 | 498 | 1471 | 290 | 138 |
| Sigma 76 | ||||||
| Sigma 85 | 089 | 2134 | 496 | 1928 | 290 | 138 |
| Sigma 90 | ||||||
| Sigma 96 | ||||||
| Sigma 106 | ||||||
| Sigma 107 | ||||||
| Sigma 114 | 11 | 1978 | 708 | 1675 | 425 | 227 |
| Sigma 136 | ||||||
| Sigma 156 | 149 | 2250 | 950 | 1835 | 560 | 335 |
| Sigma M26 | ||||||
| Sigma M27 | ||||||
| Sigma M36 | ||||||
| Sigma M66 | ||||||
| Sigma M76 | ||||||
| Sigma M96 | ||||||
| Sigma M106 | ||||||
| Sigma M25 | ||||||
| Sigma M35 | ||||||
| Sigma M229 | ||||||
| Sigma STAR45 | 1795 | 970 | ||||
| Sigma STAR90 | 1795 | 970 | ||||
| Sigma X19 | ||||||
| Sigma X29 | ||||||
| Sigma X13 | ||||||
| Schmidt Bretten Sigmastar 55v | 0 | |||||
| Schmidt Bretten Sigmastar 90 | 1795 | 970 | 0 | |||
| Schmidt Bretten S47 | 0 | |||||
| Schmidt Bretten Sigmastar 45 | 1795 | 970 | 0 | |||
| Schmidt Bretten S7 | 007 | 570 | 156 | 480 | 90 | 30 |
| Schmidt Bretten S9 | 0094 | 794 | 156 | 704 | 90 | 30 |
| Schmidt Bretten S12 | 0113 | 752 | 1915 | 38 | ||
| Schmidt Bretten S16 | 0156 | 967 | 1885 | 38 | ||
| Schmidt Bretten S20 | 02 | 990 | 296 | 860 | 178 | 49 |
| Schmidt Bretten S22 | 0249 | 990 | 296 | 860 | 178 | 49 |
| Schmidt Bretten S17 | 0134 | 979 | 196 | 868 | 110 | 51 |
| Schmidt Bretten S27 Clip | 0246 | 1107 | 295 | 980 | 174 | 72 |
| Schmidt Bretten S26 Snap | 0259 | 1115 | 305 | 980 | 174 | 72 |
| Schmidt Bretten S27 | 0246 | 1107 | 295 | 980 | 174 | 72 |
| Schmidt Bretten Sigmastar 32-35V | 1200 | 355 | 1050 | 225 | 73 | |
| Schmidt Bretten S32 | 0367 | 1202 | 350 | 1056 | 230 | 75 |
| Schmidt Bretten S37 | 0343 | 1230 | 355 | 1076 | 218 | 88 |
| Schmidt Bretten S37 Clip | 0343 | 1230 | 355 | 1076 | 218 | 88 |
| Schmidt Bretten S52 | 058 | 1416 | 478 | 1252 | 314 | 120 |
| Schmidt Bretten S65 | 0655 | 1677 | 496 | 1471 | 290 | 138 |
| Schmidt Bretten S65 Clip | 0655 | 1677 | 496 | 1471 | 290 | 138 |
| Schmidt Bretten S66 Snap | 0659 | 1678 | 498 | 1471 | 290 | 138 |
| Schmidt Bretten S85 | 089 | 2134 | 496 | 1928 | 290 | 138 |
| Schmidt Bretten S64 | 0655 | 1661 | 481 | 1471 | 290 | 140 |
| Schmidt Bretten S108 | 107 | 1975 | 707 | 1675 | 425 | 227 |
| Schmidt Bretten S114 | 11 | 1978 | 708 | 1675 | 425 | 227 |
| Schmidt Bretten S138 | 139 | 2382 | 707 | 2081 | 425 | 227 |
| Schmidt Bretten S156 Snap | 149 | 2250 | 950 | 1835 | 560 | 335 |
| Schmidt Bretten S149 Snap | 149 | 2250 | 950 | 1835 | 560 | 335 |
